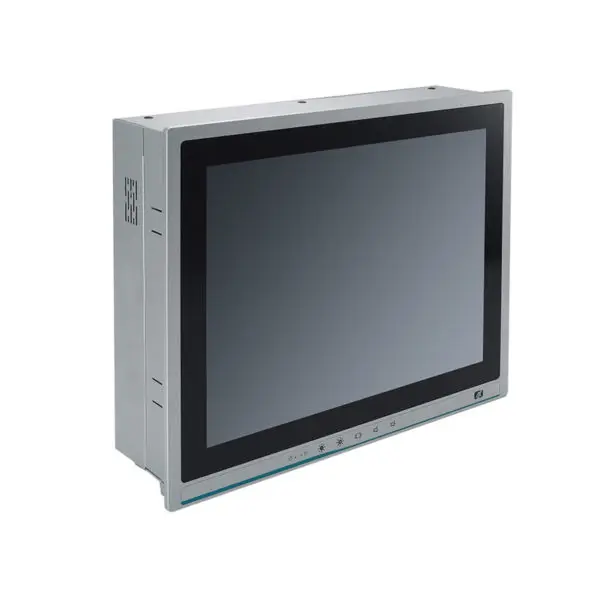

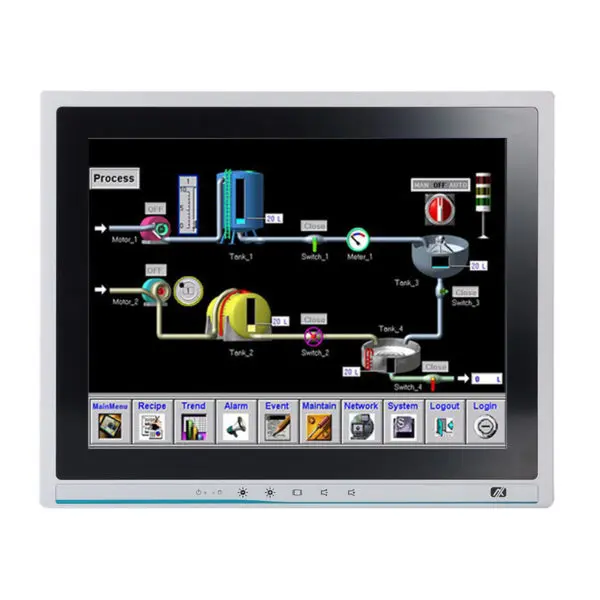

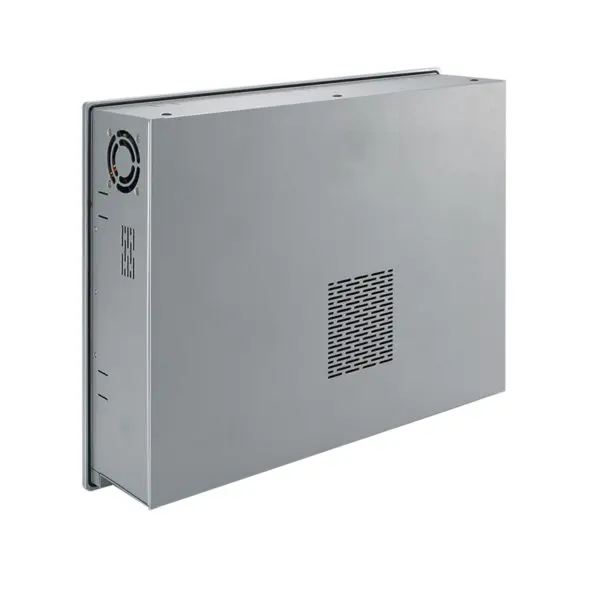

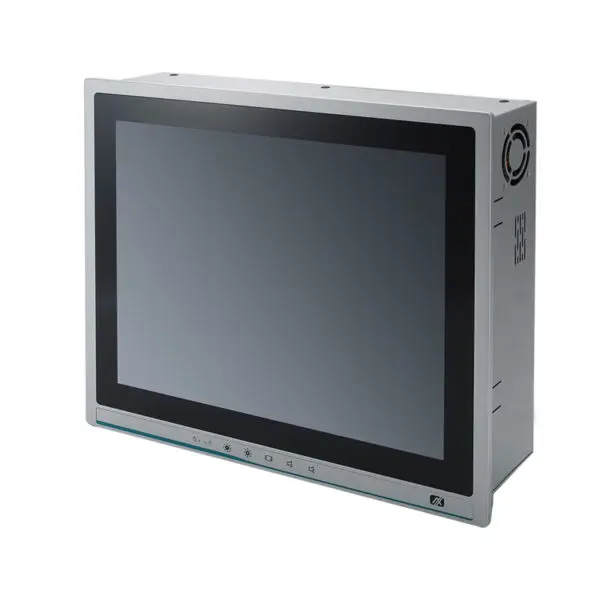

P1157E-500
15" XGA TFT Expandable Industrial Touch Panel Computer with 7th/6th Gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® Processor and 1 PCI/PCIe Slot
- 15″ XGA TFT LCD display
- LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors
- Intel® H110 chipset
- Less screw design for easy installation

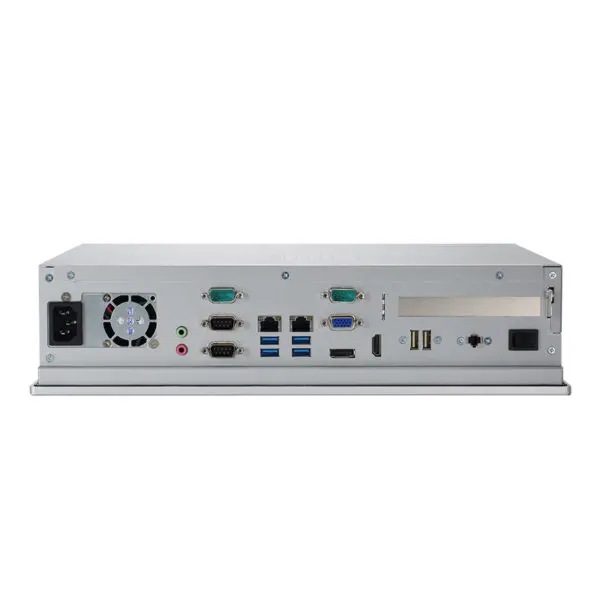

- 4 USB 3.0, 2 USB 2.0 and 4 COM ports
- One PCIe x4 or one PCIe slot
- Built-in speakers and optional Wi-Fi 802.11 b/g/n module
- Robust IP65 compliant aluminum front bezel
- 5 OSD keys in front panel
Description
The P1157E-500 adopts a 15″ XGA TFT LCD display, featuring an IP65-rated front bezel and 5-wire resistive touchscreen with 250 nits brightness– making it perfectly suited for use in multimedia kiosks or as a human machine interface (HMI) in factory automation applications. The 15″ P1157E-500 has scalable CPU options with the 7th/6th generation Intel® Core™ i7/i5/i3, Celeron® and Pentium® processors in an LGA1151 socket with an Intel® H110 chipset (codename: Kaby Lake). This industrial touch panel system supports dual DDR4-2133 Long-DIMM sockets with up to 32 GB memory. The IP65-rated P1157E-500 features one PCIe x4 slot or one PCI slot for flexible integration of a variety of add-on cards. It also comes with built-in speakers for multimedia applications, and an optional Wi-Fi 802.11 b/g/n module and WLAN antenna for wireless connectivity.
Technical Specifications
| CPU |
|---|
| CPU Manufacturer | Intel
|
|---|
| Memory |
|---|
| Connectivity |
|---|
| Serial Comms | Ethernet 10/100/1000 (Gigabit)
RS232
RS232/422/485
USB 2.0
USB 3.0
|
|---|
| Audio / Visual |
|---|
| Display | DisplayPort
HDMI/DVI
VGA
|
|---|
| Touch | Resistive
|
|---|
| LCD Size | 15"
|
|---|
| Miscellanneous |
|---|
| Operating System | Windows 10
Windows 7
Windows 8
|
|---|
| Sealing | IP65
|
|---|
See datasheet for more detailed information.
Download Datasheet
Product doesn't match your spec?
We may be able to customise this product for you.
Downloads
Documentation
| File Name | Description | Download |
|---|
| P1157E-500 Datasheet | Datasheet for the P1157E-500 Panel PC. |
448.03 KB |
|---|
Software
There are currently no software downloads available for this product. Please get in touch if you require assistance.
Designs
There are currently no designs downloads available for this product. Please get in touch if you require assistance.
